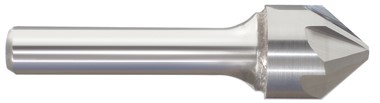

7/8x1/2 90° 6FL CARB CNSK

View Larger

Part Number: CP-52668

Availability: In Stock

$76.20

Quantity:

Total:$76.20

Description:

Designed for general purpose countersinking, chamfering and deburring in most ferrous and non-ferrous materials. Larger sizes are solid carbide heads, induction brazed onto hardened steel shanks to ensure a solid and safe-secure bond.

Icons:

Technical Specifications:

Category: Six Flute - Chatterless

Flutes: 6

Diameter: 7/8"

Diameter
(Decimal Inch): 0.8750 In.

Diameter
(Metric): 22.23mm

Shank Diameter: 1/2"

Shank
(Decimal Inch): 0.5000 in.

Overall Length: 3"

Overall Length
(Decimal Inch): 3.0000 in.

Includes Pilot: No

Single Double End: Single

Finish: Bright

End Style: 90° Included Angle

Included Angle: 90°

Material: Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

Centerline Angle: 45

Countersink Application: Countersinking

Countersink Head Only: No

Applications:

Countersinking

Use Materials:

Steels
Stainless Steels
Cast Iron
High Temp Alloys
Hardened Steels

Shipping:

Usually ships SAME DAY if ordered before 6pm Eastern via UPS from California

Speeds & Feeds:

Click here for recommended speeds & feeds.

Additional Details:

Made in the USA
Right Hand Cut
Straight Shank
C2 Grade Tungsten, Submicron Grain Carbide with 10% Cobalt Binder
6 Flute
90&deg; Included Angle
Bright finish
