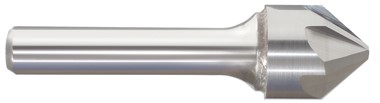

5/8x3/8 120° 6FL CARB CNSK

View Larger

Part Number: CP-52660

Availability: In Stock

$40.15

Quantity:

Total:$40.15

Description:

Designed for general purpose countersinking, chamfering and deburring in most ferrous and non-ferrous materials. Larger sizes are solid carbide heads, induction brazed onto hardened steel shanks to ensure a solid and safe-secure bond.

Icons:

Technical Specifications:

Category: Six Flute - Chatterless

Flutes: 6

Diameter: 5/8"

Diameter
(Decimal Inch): 0.6250 In.

Diameter
(Metric): 15.88mm

Shank Diameter: 3/8"

Shank
(Decimal Inch): 0.3750 in.

Overall Length: 2-3/4"

Overall Length
(Decimal Inch): 2.7500 in.

Includes Pilot: No

Single Double End: Single

Finish: Bright

End Style: 120° Included Angle

Included Angle: 120°

Material: Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

Centerline Angle: 60

Countersink Application: Countersinking

Countersink Head Only: No

Applications:

Countersinking

Use Materials:

Steels
Stainless Steels
Cast Iron
High Temp Alloys
Hardened Steels

Shipping:

Usually ships SAME DAY if ordered before 6pm Eastern via UPS from California

Speeds & Feeds:

Click here for recommended speeds & feeds.

Additional Details:

Made in the USA
Right Hand Cut
Straight Shank
C2 Grade Tungsten, Submicron Grain Carbide with 10% Cobalt Binder
6 Flute
120&deg; Included Angle
Bright finish
