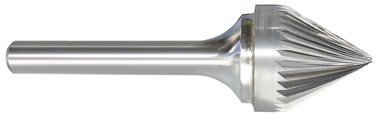

SJ-42 60° SINGLE END S/C

View Larger

Part Number: CP-51608

Availability: In Stock

$3.75

Quantity:

Total:$3.75

Description:

General purpose single cut flute pattern provides for good material removal and work piece finishes. Designed for: acute angle machining, chamfering and countersinking in brass, bronze, copper, cast iron, 45-60 Rc steels, carbon steel, nickel chrome steel, stainless steel, steel weldments and titanium.

Icons:

Technical Specifications:

Category: SJ-Shape - 60° Included Angle Cone

Industry Specification: SJ-42

Flutes: Single Cut

Diameter: 1/8"

Diameter
(Decimal Inch): 0.1250 In.

Diameter
(Metric): 3.18mm

Length of Cut: 3/32"

Length of Cut
(Decimal Inch): 0.0938 in.

Shank Diameter: 1/8"

Shank
(Decimal Inch): 0.1250 in.

Overall Length: 1-1/2"

Overall Length
(Decimal Inch): 1.5000 in.

Single Double End: Single

Tool Length: Regular

Finish: Bright

End Style: 60° Cone

Included Angle: 60°

Material: Solid Carbide

Material Grade: C-2 Sub-Micron

Cut Direction: Right Hand

NOTE: Included in the following set: CP-52254

Applications:

Deburring

Shipping:

Usually ships SAME DAY if ordered before 6pm Eastern via UPS from California

Speeds & Feeds:

Click here for recommended speeds & feeds.

Additional Details:

Made in the USA
Right Hand Cut
C2 Grade Tungsten, Submicron Grain Carbide with 10% Cobalt Binder
Bright finish
